PRODUCT PARAMETERS
| Product Name | Hot induction bend |
| Size | 1/2"-36" seamless, 26"-110" welded |
| Standard | ANSI B16.49, ASME B16.9 and customized etc |
| Wall thickness | STD, XS, SCH20,SCH30,SCH40, SCH60, SCH80,SCH100 ,SCH120,SCH140, SCH160, XXS ,customized, etc. |
| Elbow | 30° 45° 60° 90° 180°,etc |
| Radius | multiplex radius, 3D and 5D is more popular, also can be 4D, 6D, 7D, 10D,20D, customized, etc. |
| End | Bevel end/BE/buttweld, with or with tangent(straight pipe on each end) |
| Surface | nature color, varnished, black painting, anti-rust oil, 3pe coating, epoxy coating, hot dip galvanized coating, etc. |
| Material | Carbon steel:API 5L Gr.B, A106 Gr. B, A234WPB, A420 WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,P235GH, P265GH, P280GH, P295GH, P355GH etc. |
| Pipeline steel: API 5L X42, X52,X46,X56, X6-, X65, X70, X80, ASTM 860 WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc. | |
| Cr-Mo alloy steel: A234 WP11,WP22,WP5,WP9,WP91, 15XM, 10CrMo9-10, 16Mo3 etc. | |
| Application | Petrochemical industry;aviation and aerospace industry;pharmaceutical industry,gas exhaust; power plant;ship building; water treatment, etc. |
| Advantages | ready stock,faster delivery time;available in all sizes,customized;high quality |
BENEFITS OF HOT INDUCTION BENDING
Better Mechanical Properties:
The hot induction bend method ensures the mechanical properties of the main pipe comparing with cold bend and welded solutions.
Reduces Weld and NDT Costs:
Hot bend is a good way to reduce the number of welds and non-destructive costs and risks on the material.
Rapid Manufacturing:
Induction bending is a highly effective way of pipe bending, as it is fast, precise, and with few errors.
Stainless steel pipe bend
Beside carbon steel, Cr-mo alloy steel and low termperature carbon steel,other materials pipe bends are avaible too, such as stainless steel , nickle alloy, duplex steel. etc.
Radius of bend
Bend radius, which is measured to the inside curvature, is the minimum radius one can bend a pipe, tube, sheet, cable or hose without kinking it, damaging it, or shortening its life. The smaller the bend radius, the greater is the material flexibility (as the radius of curvature decreases, the curvature increases)
For radius of bend, can be customized.
Not only 2d bend, 3d bend, 5d bend, 6d bend, 7d bend, 10d bend, 20d bend, but also special drawing design.
Shape of bend
Shape of bend can be round or square
Raw materials
1. All raw materials we choose are brand new.
2. We supply Mill certificate when delivery
3. We done PMI test on raw materials before starting production
4. All raw materials from big factories
Hot induction bend
1. Smallest size from 1/2"
2. Biggest size is up to 110"
3. More than 20 years production experiences
4. We have equipments and various moulds for different dimension bend elbows

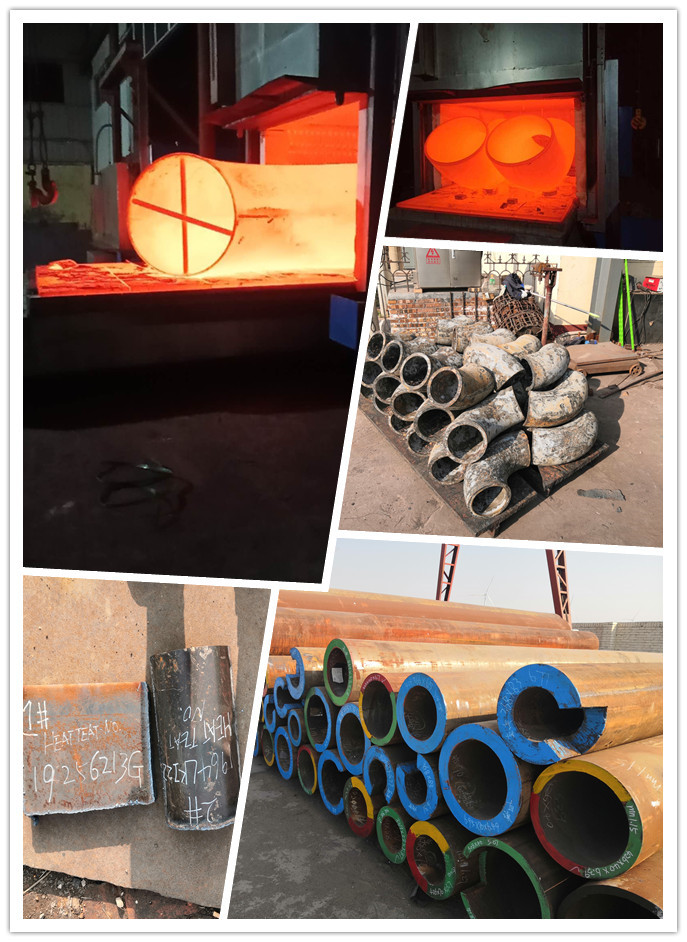

HEAT TREATMENT
1. Keep sample raw material to trace.
2. Arrange heat treatment as per standard strictly.

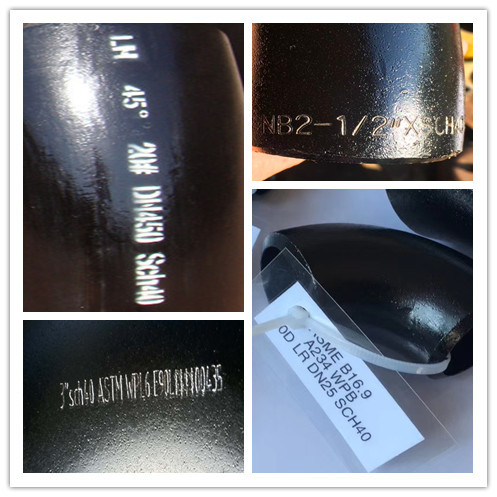

MARKING
Various marking work, can be curved, painting, lable. Or on your request. We accept to mark your LOGO

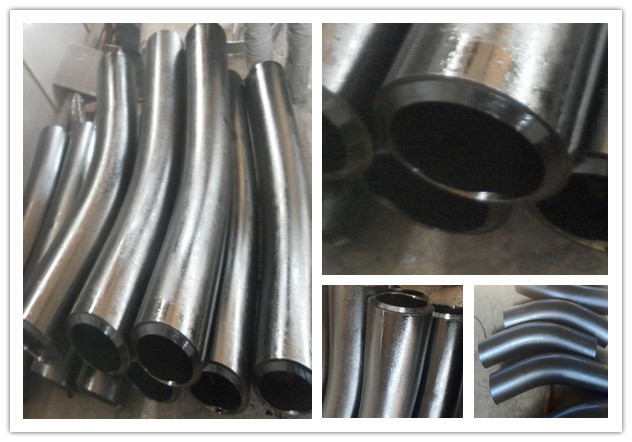

DETAILED PHOTOS
1. Bevel end as per ANSI B16.25.
2. Sand blast first, then Perfect painting work. Also can be varnished.
3. Without lamination and cracks.
4. Without any weld repairs.
5. Can be with or without straightpipe on each end.
6. Painting color can be others, like blue, red, gray, etc.
7. We can offer 3LPE coating or other coating on your request.

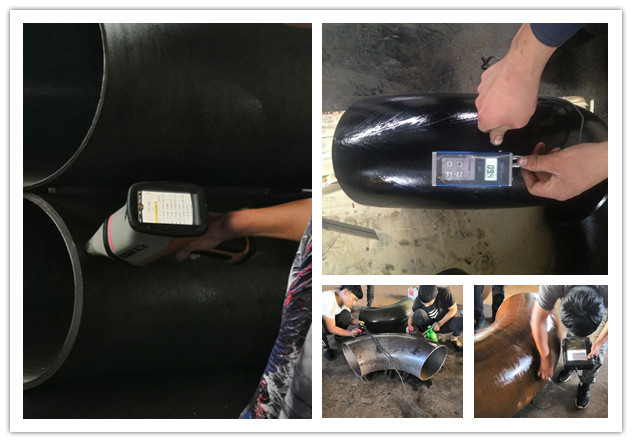

INSPECTION
1. Dimension measurements, all within standard tolerance.
2. Thickness tolerance:+/-12.5% , or on your request.
3. PMI.
4. MT, UT,PT, X-ray test.
5. Accept Third party inspection.
6. Supply MTC, EN10204 3.1/3.2 certificate.

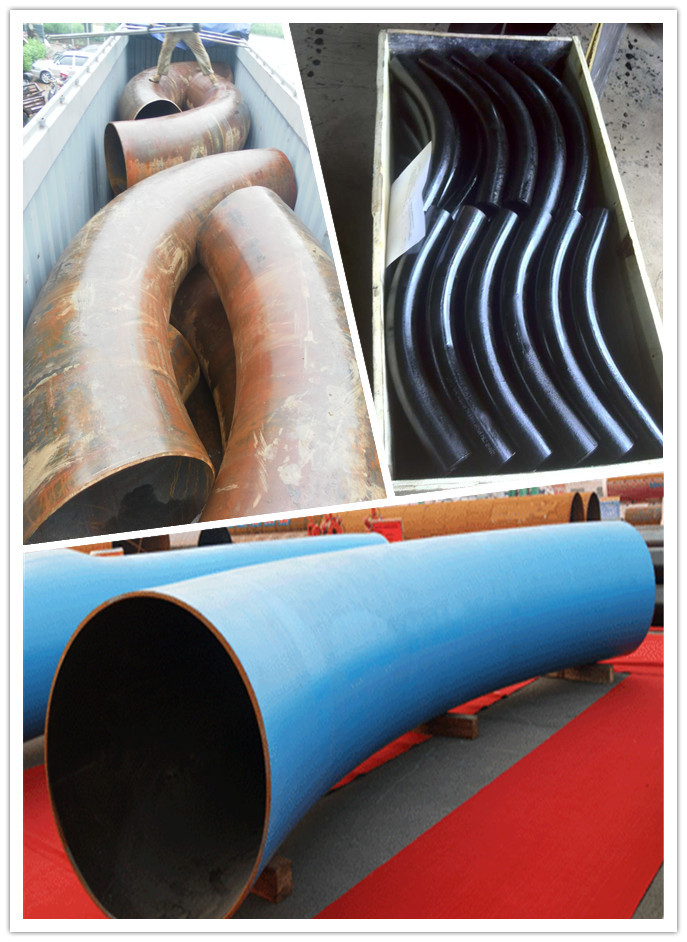

PACKAGING & SHIPPING
1. Packed by plywood case or plywood pallet as per ISPM15
2. we will put packing list on each package
3. we will put shipping markings on each package. Markings words are on your request.
4. All wood package materials are fumigation free
5. To save shipping cost, customers always need no package. Put the bend into container directly
